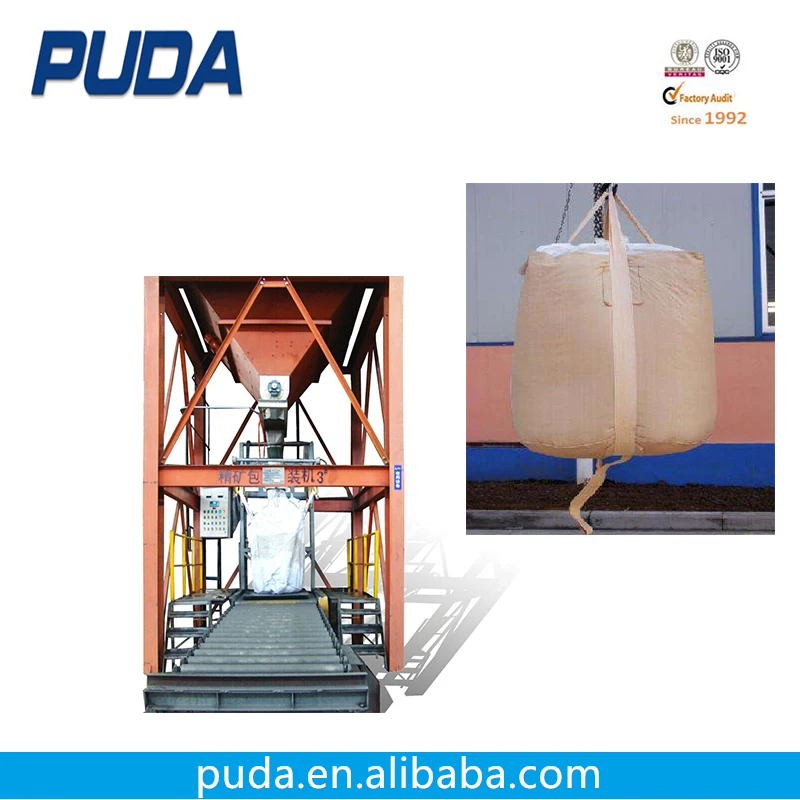

1000kg big bag automatic metal powder packing filling machine

1000kg Big Bag Automatic Metal Powder
  • Seller Qinhuangdao Puda Electronic Co., Ltd.
  • Min. Order 1 Set/Sets big bag filling machine
  • FOB Price US $15000-35000 /Set

Item Details

Port: TIANJIN
Supply Ability: 10 Set/Sets per Month powder filling machine
Payment Terms: L/C,D/P,T/T

Product Description

1000kg big bag automatic metal powder packing filling machine
Product Description

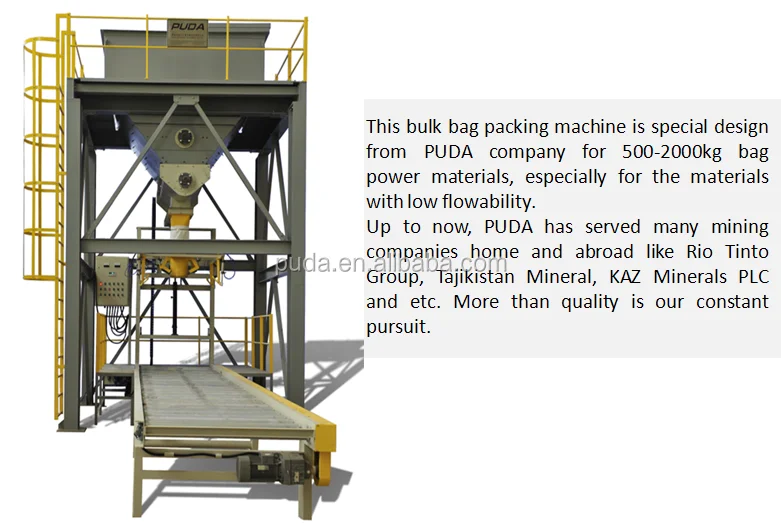

Screw feeding big bag packing machine for packing powder materials which flowability is not good. Representative materials are Alumina, Kaolin, Lime Carbonate, Bentonite, Dry Mortar, powder copper concentrate and etc.

1. Applicable Range:(and other low flowability powder out of the list)

2. Technical Parameters:
1) Weighing Range: 500-2000 kg
2) Packing Rate: 10-30 bags/hour(packing speed depends on the material features and packing bags)
3) Weighing Accuracy:±0.2%-0.4%
4) Applicable Voltage: AC22OV-440V 50/60HZ Three Phases and Four Lines
(Clients should supply the voltage class and frequency at their local place)
5) Air Source Requirement: 0.5-0.8MPa Dry Compressed Air,Total Air Consumption: 0.6m3/min
6) Applicable Environment: Altitude≤4300meters (Established Project), Humidity≤95% RH Non-congealable Dew, Operating Temperature:-10℃~50℃, Storage Temperature : -30℃~70℃

3. Working Principle:
DCS-TWJL big bag packing machine adopts screw feeding method, the high precision weighing system can guarantee the accuracy of packaging effectively. Put the opening of the filling bag on the discharging canister, then hang the braces onto the clamping device, start packing machine and clamp the opening automatically . The materials will be sent to the filling opening through the screw which is controlled by the frequency converters.Filling process will be divided into high, middle, low three-level speeds by the control feed mechanism, when the weight reach the preset value, the screw stops working, then loosen the bag and braces automatically by the control system. At last, move the finished packing bag by the forklift or other devices. This kind of machine has the function of bottom vibration, and can adjust the height according to the bag size. It could make the filling materials more compact to increase the capacity of the packing bag. It has the features of stable packing speed, high precision weighing, simple operation and easy maintenance, etc.

4. Some Customers' Site:

5. Detailed Information:

Packaging & Shipping

packing : wooden case

Shipping : sea shipping or truck shipping
