China laser cutting machine for metal price

China Laser Cutting Machine For Metal
  • Seller Jinan Bodor CNC Machine Co., Ltd.
  • Min. Order 1 Set/Sets China laser cutting machine for metal price
  • FOB Price US $40000-100000 /Set

Item Details

Port: Qingdao/ Tianjin/ Shanghai/ Guangdong
Supply Ability: 100 Set/Sets per Month China laser cutting machine for metal price
Payment Terms: L/C,T/T,Western Union,China laser cutting machine for metal price

Product Description

ProductFDescription

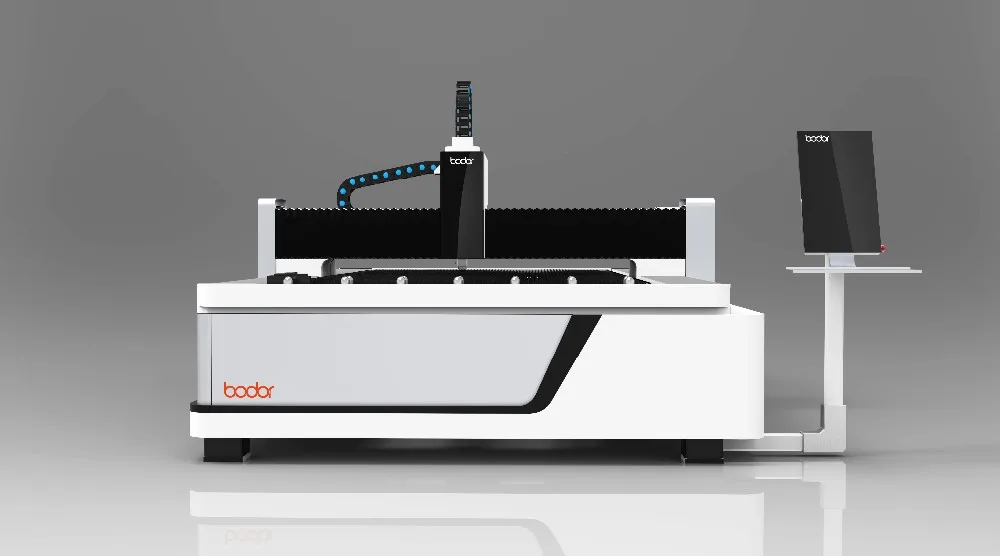

China laser cutting machine for metal price


Product Application

With the 1500mm x3000mm working area, the F1530 is the basic and the most economic model for F1530. Widely used in the processing of advertising board, metal plate structure, Hv/lv electrical ark production, textile machinery parts, kitchen utensils, car, machinery, elevator, electric parts, spring coil slice, subway line spare parts, etc..

SPECIFICATION FOR F1530 FIBER LASER METAL CUTTING MACHINE
Laser head
Switzerland RAYTOOLS; Model: BT240
Laser generator
500w/700w/800w/1000w/1500w/2000w/2500w/3000w/ Maxphotonics IPG Raycus laser generator
X,Y axis working size
1500*3000mm
Z axis height
120mm auto moving height ,CBS100 Height regulator
Precision
Positioning accuracy 0.03mm , reposition accuracy 0.02mm
Speed
Max moving speed 150m/min , max cutting 35m/min
Control system
Cypcut control system
Working table
Sawtooth blade working table
Drive system
France Schneider servo motor; Y (each) axis 2000W; X axis 1000W; Z axis 400W
Transmission
Taiwan silver HIWIN square rail, Taiwan YYC gear rack
Guide rail
All axis Original Taiwan Hiwin square guide rail ,X (25mm),Y (35mm),Z (20mm)
Electric components
French Schneider electrical components
Pneumatic components
Japan SMC pneumatic components
Bearing
Japan NSK bearing
Machine size+ weight
4550*2300*2000mm , After package ,weight 3000kg
Maximum acceleration
1.2G
Other parts
auto lubrication system + pressure gage + laser protective goggles + WIFI Control+ control panel and etc.

Main Features

1.500w/700w/800w/1000w/1500w/2000w/2500w/3000w/ Maxphotonics IPG Raycus laser generator
2.Working area(X*Y*Z): 1500mm*3000mm*120mm
3.Laser head: Switzerland RAYTOOLS laser head
4.Control: Cypcut control system
5.Drive system : France Schneider servo motor
6.Reducer: France MOTOREDUCER reducer
7.Transmission: Taiwan silver HIWIN square rail,Taiwan YYC gear rack
8.Components: France Schneider electronic components
9.Lubrication: Guide rail automatic lubrication system
10.Switzerland design
11.3 years warranty

12. Wifi control and Wifi remote diagnosis system

Detailed Images

Machine Parts

Name: Laser head

Brand: Raytools

Original: Switzerland

Rotary Knob type focus point adjustment for fine and flexible adjustment. Adjustable range: 20mm, accuracy: 0.05mm.
Drawer type mirror seat to make protect glass replacing faster and easier.
Both collimating lens and focal lens could apply compound lens for optimal optical quality and cutting result.
Modular design with optional collision-proof protective devices or pneumatic knife to realized swiftly switch between welding and cutting.
Optional magnetic collision-proof protective modular that would activate reliable separation and immediately light off in case of collision.

Machine Parts

Name: Control cabinet
Brand: BODOR
Original: China
Integrated the laser source and all the electronic machine parts, the cabinet can protect the precious electric parts and expensive laser source. The fan in the cabinet provide a better cooling system for the electrical parts

Machine Parts

Name: machine motor and driver
Brand: Schneider
Original: France
Y (each) axis 2000W; X axis 1000W; Z axis 400W

The motor could do the control loop configuration, optimization,and maintenance.
Equipped with SoMove software for easy setup and adjusting
Driver Printed circuit board with coating protection,improve the reliability in the polluted environment

Main Parts

Name: Bearing
Brand:NSK
Original:Japan

These bearing housings have square flange which can be easily attached to a machine with four bolts.
With its simple mounting face, this bearing unit is widely used.




Main Parts


Name:Motor Reducer
Brand:MOTOREDUCER
Original:Japan

Satellite gears are double-supported on hardened and ground shafts with full-complement needle bearings increasing torsional stiffness.
Backlash ≤ 3 arcmin.
Standard operating temperature range is -15℃ to 45℃.
Protection rated IP 65 standard.


Main Parts


Name: Pneumatic parts
Brand: SMC
Original: Japan

Stepless control of air pressure proportional to an electrical signal.
Serial communications specifications.
Compact/lightweight (Integrated communication parts).


Main Parts

Name: Electronic Parts

Brand: SMC
Original: Japan


Circuit protection against short-circuit currents,
Circuit protection against overload currents,
Breaking and industrial disconnection as per standards IEC/EN 60947-2.
Overvoltage resistance,
High performance limitation,
To fast closing independent of the speed of actuation of the toggle.




Title goes here.

Name: Laser Source
Brand: IPG, Maxphotonics
Original: America, China


Wavelength range:1070~1090nm
Beam quality TEM00 (M2<1.8)
Forced air/Water cooling
More than 100000 hours work-life of pumped diode

Title goes here.


Name: Automatic lubrication system
Brand: VERSA III
Original: China


Electrical lubrication is a kind of gear pump with rational construction, great performance and comprehensive functions.
By connection with program control system in the main machine, the lubrication system could oversee oil level within tank as well as oil transmission pressure and set lubrication periodicity, which will effectively prevent rust within lubrication system to ensure cutting accuracy.


Samples

Metal laser cutting machine can cut: 1-30mm Stainless Steel

Fiber laser cutting machine can cut:
1-25mm Carbon Steel

Cnc fiber laser machine can cut:
1-20mm Aluminum

Exhibition




Saudi Arabia

Metal&Steel April 30th-May 3th 2017




India

Blech April 27-29th 2017




Lyon

Eurexpo Appril 4-7 2017




TAIWAN

TIMTOS March 07-12th 2017



SHANGHAI

The 25th Shanghai Ad & Sign Expo

March 08-11th 2017




STEEL FAB

Jan 16th to 19th 2017, UAE

Packing & Delivery
Packaging
Size
4550(L)*2300(W)*2000(D)mm
Weight
3T



Packaging Details
The normal package is 20GP wooden seaworthy box (Size: 5.9(L)*2.35(W)*2.39(H)m).We will use frame to fasten the pakage. If container is too tigher,we will use pe film for packing or pack it according to customers special request.
