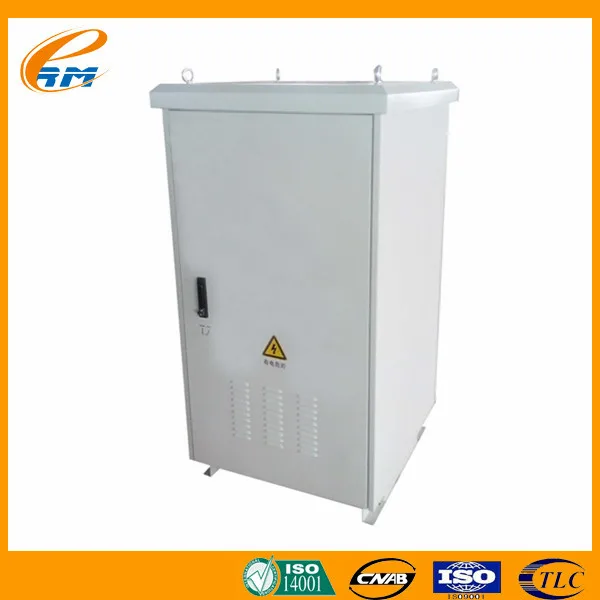

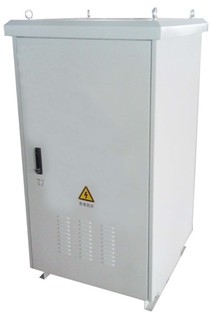

IPX55 MDF Power Equipment Telecommunication Outdoor Cabinet

IPX55 MDF Power Equipment Telecommunication Outdoor
  • Seller Rongming Communication (Sichuan) Co., Ltd.
  • Min. Order 1 Set/Sets Sample is available
  • FOB Price US $1-100 /Set

Item Details

Port: Chengdu,, Shanghai, Shenzhen
Supply Ability: 30000 Piece/Pieces per Month
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,One-touch

Product Description

HWJG Cabinet Series

RM-HWJG Cabinet Series

RM Communication design and manufacturer of the RM-HWJG cabinet series is mainly suitable for FTTX access network, the cabinet equipped with can be installed within the communication equipment, power supply, battery, temperature control equipment and other auxiliary equipment (such as: MDF, ODF, etc.), It keeps the internal device good operation, provides reliable mechanical and environmental protection.
Production Features

-The cabinet adopts subdivision type design, each compartment completely independent non-interference in each other

-New structure design is the result of using the experience of many years, high strength, good searing performance

-The cabinet is double layer design, inner filled high quality phenolic aldehyde (PF) with good heat insultation performance

-Excellent structure design, guarantee the door gap control within 1mm

Main Application

RM-HWJG series products are mainly used in communications, electricity, rail transport, monitoring, security, etc

Specification
Type
Unit
Power Cabinet
Size (H x W x D)
mm
1500*700*650
Weight
KG
140
Installation
Ground
Working Temperature
-40~+55
IP Level

IPX55
Thermal Conductivity
W / (m.K)
=0.03
Cabinet Configuration

1pcs Equipment Cabinet,1pcs MDF Distribution Cabinet
Door Open Mode

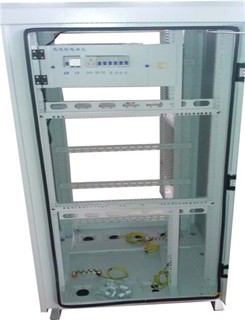

Equipment Cabinet(Front Open);
Distribution Cabinet(Back Open)
Installed Capacity
3pcs DSL/LAN Device
Installation Space
in
19*19
Power Supply
AC Power
1 input 1P 32A Air-switch,8 outputs 1P 16A Air-switch;
1 route 220V 5ports Power Socket(Standard); Automatic Reclosing Switch(Optical)
40KA/60KA Single Phase B Level Anti-thunder
DC Power
48V DC Power, Max 6A
Temperature Control Device(on door)
Air Fan (Standard)
4pcs 48V DC Delta Fan with Speed Control by Temperature
A/C(Optional)
Working Power 550W, Working Voltage 220V
Refrigerating Capacity:1500W Air Volume:326 m³/h EER:2.81%
Heat Exchange
(Optional)
Noise Level≤65 dB, Protection Level(internal/external cycle)/external cycle IP55
Heat Transfer Coeffcient: 190W/K, Heater Power: 1000W
DDF
Option
Offer Full Configuration :8 systems, 16 systems, 24 systems
DDF
Option
Offer Full Configuration: 12 cores, 24 cores, 48 cores, 96 cores ODF systems

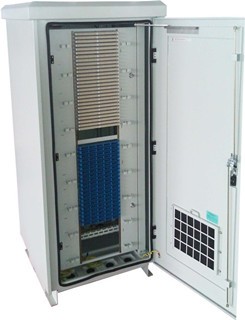

MDF Module Capacity
10 Loop Line, 3M/Kolner Module
100
32 Inerior Line+25 Exterior Line
24+24
Application Industry
Telecommunication,Power Supply,Rail Transit
Material Description

-Cabinet adopts high quality SU201 stainless steel

-The surface of the sheet metal with vitrified pretreatment, electrostatic powder coating of Akzonobel outdoor powder

-Cabinet supporting part is 2.0mm, cabinet body is 1.5mm

-Communications woring warehouse adopts Aluminum zinc plate

Production Equipment

Trulaser-Laser Cutting Machine


Digital Punching Machine


Gema Painting Workshop


Workers


Workshop


Transportation

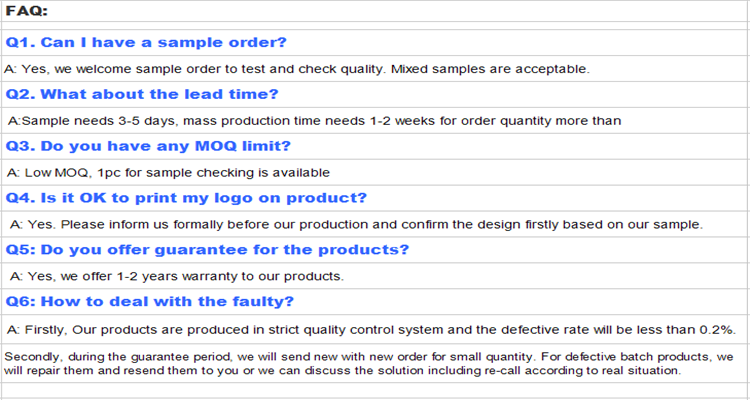

FAQ
