Welded concrete reinforcement steel bar mesh machine

Welded Concrete Reinforcement Steel Bar Mesh
  • Seller Hebei Dapu Import & Export Trade Co., Ltd.
  • Min. Order 1 Set/Sets
  • FOB Price US $30000-60000 /Set

Item Details

Port: Tianjin Port, China
Supply Ability: 20 Set/Sets per Month
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,RMB, Cash

Product Description

Product Description

Welded concrete reinforcement steel bar mesh machine

  • Model: DP-GW-2500A
  • Wire diameter: 5-12mm
  • Longitude wire space: 100-300mm
  • Cross wire space: min.50mm
  • Mesh width: max.2.5m
  • Mesh length: max.12m
  • Welding speed: 45-65 times/min
  • Welding transformer: 150kva*12pcs
  • Longitude wire feeding: pre-cut
  • Cross wire feeding: pre-cut&hopper
  • Welding electrodes: 24pcs

Main Technology

Machine Contrast

Main electric components

Finished mesh&application

Auxiliary Equipments

Cold rolling ribbed machine, 1 set

  • Model: LZ-15000T
  • Wire diameter: 5-12mm
  • Speed: 90-120m/min
  • Motor capacity: 55kw+7.5kw
  • Motor frequency inverter: 55kw+11kw
  • Wire spool: 1T/bundle
  • Ribbed depth: 0.2-0.5mm
  • Material: hor rolling plain bar
  • Weight: 4500KG

Wire straightening and cutting machine, 2 sets

  • Model: GT6-14
  • Wire diameter: 5-12mm
  • Cut length: 800-12000mm
  • Straighten motor: 11kw
  • Cut motor: 5.5kw
  • Speed: 45-65m/min
  • Straighten degree: +/-2mm
  • Material: round bar or ribebd bar
  • Weight: 1300KG

Loading Pictures-one 40 feet container


Q: What's the machine price?

A: We need to know your wanted wire diameter, mesh hole size and mesh width.

Q: What's the production capacity?

A: If cross wire space is 100mm, 8 hours can produce about 320pcs 6m length reinforcing mesh panels.

If cross wire space is 150mm, 8 hours can produce about 480pcs 6m length reinforcing mesh panels.

Q: Can you make voltage according to my requirement?

A: yes, we can make 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.

Q: What's the payment terms?

A: 30% T/T in advance, 70% T/T before shipment, or 100% irrevocable L/C at sight, or cash etc. It is negotiationable.

Q: How to install the machines?

A: Please check below "After sales service".

Export Documents

CE certificate Customs declaration Form E Passport

After-sales service

Guarantee time: 18 months.
Spare parts: If non-quick wear part is broken, we can change for free.
Complete installation instructions&circuit diagram.

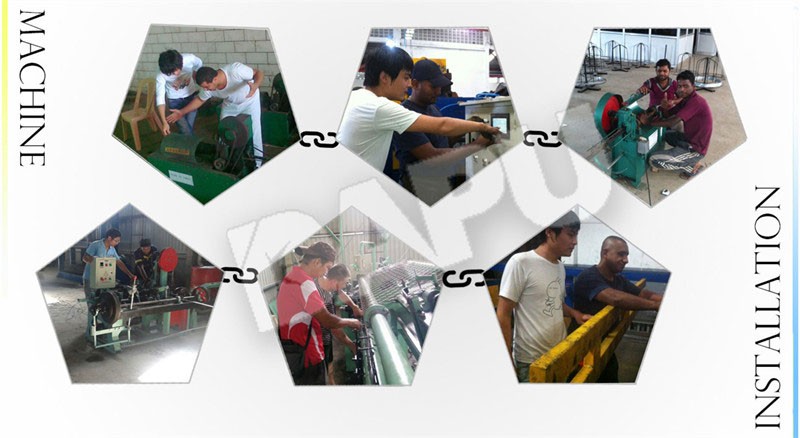

Send best engineer to your fatory for installation&training.
24 hours support service.
